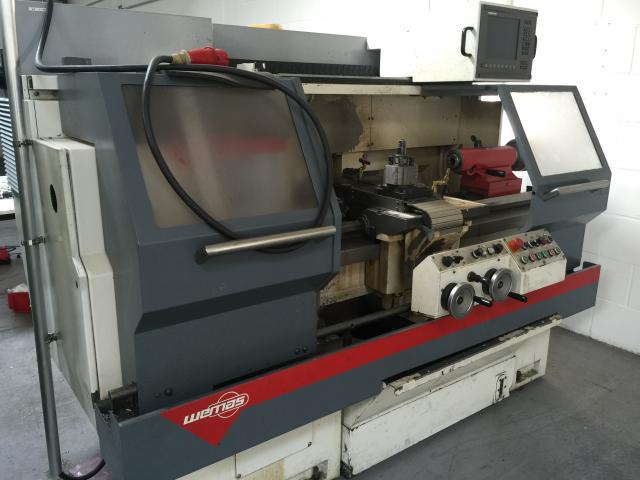

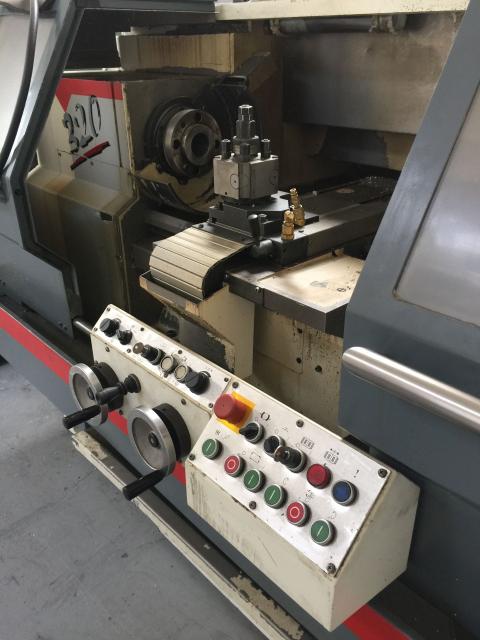

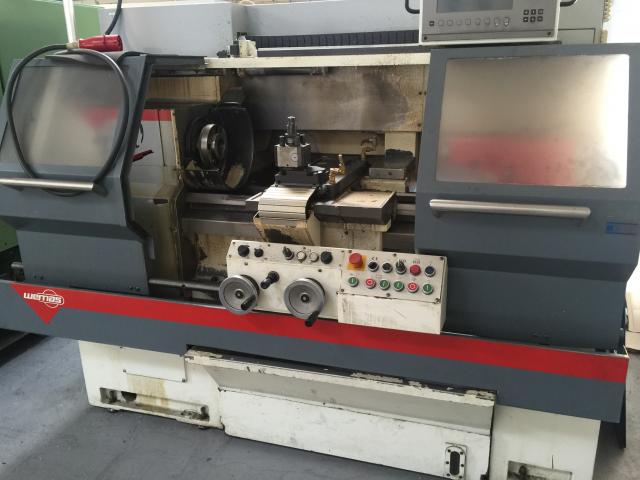

Description: | Technical specifications:
Turning diameter over bed 320 mm
Turning diameter over cross support 150 mm
Tip width 800 mm
Spindle bore 50 mm
Cone in the spindle - metric 60
Motor power at 1500 rpm 7.0 kW
Spindle speed range
Control system Heidenhain 1st row 0 - 1000 rpm.
2nd Row 20 - 4000 rpm.
X-axis diameter of the lead screw 20 mm
Leadscrew pitch 5 mm
Max. Stroke 190 mm
Rapid feed 7500 mm / min
Max. Feed force 3000 N
Accuracy of repeated position adjustment 0.008 mm
Y-axis diameter of lead screw 25 mm
Leadscrew pitch 5 mm
Max. Stroke of the support carriage : 750 mm
Rapid feed : 8000 mm / min
Max. Feed force 5000 N
Accuracy of repeated position adjustment 0.008 mm
Tool head Multifix B
max diameter of the steel 25 x 25 mm
tailstock
Pinhole diameter 65 mm
Quill stroke 125 mm
Cone of the quill Morse 4
Dimensions 2160 x 1594 x 1875 mm
Weight approx 2150 kg
With
- HEIDENHAIN Manual Plus
- Three-jaw lathe chuck
- Multifix steel holder with 4 inserts
used, in good condition |
