Páliace stroje > lasery > TruLaser 5030 fiber

Inv. číslo:	109003
Typ:	TruLaser 5030 fiber
Parametre:
Výrobca:	Trumpf
Rok výroby/SO/GO:	2017/-/-
Lokalita:	Česká republika

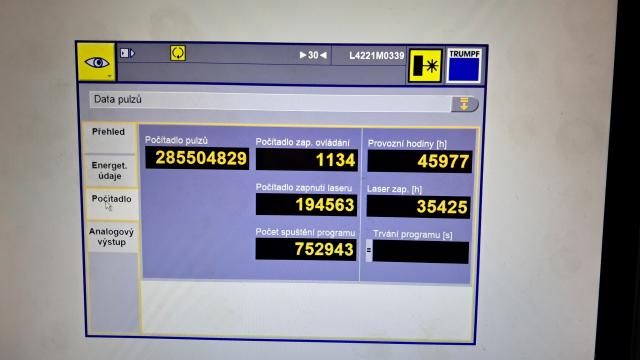

Popis:	Type:TruLaser 5030 fiber (L68); Year:09-2017; Working area:3000 x 1500 x 115 mm; Laser rated output:8000 Watt; Control:Siemens Sinumerik 840D SL; Working hour*:ca. 42.770/30.000 h; Max. Sheet thick./St:25 mm; Max. Sheet thick./VA:20/40 mm (with BrighLine fiber; Max. Sheet thick./AI:20/25 mm (with BrightLine fibe; Max. Speed:265 m/min.; Positioning accuracy:+/- 0,1 mm; Length:9229 mm; Width:6145 mm; Height:2200 mm; Weight:9700 kg

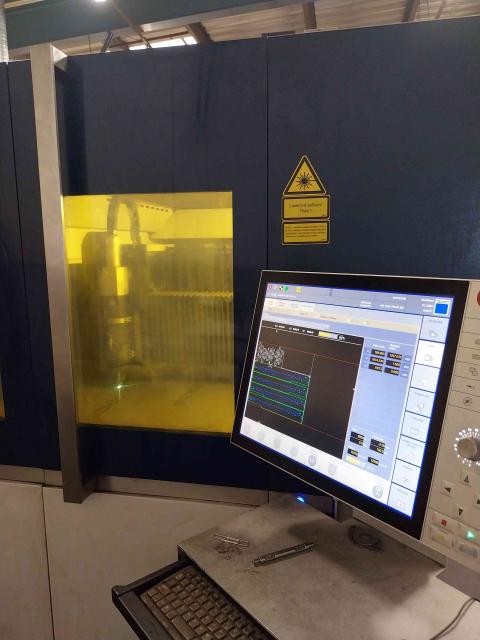

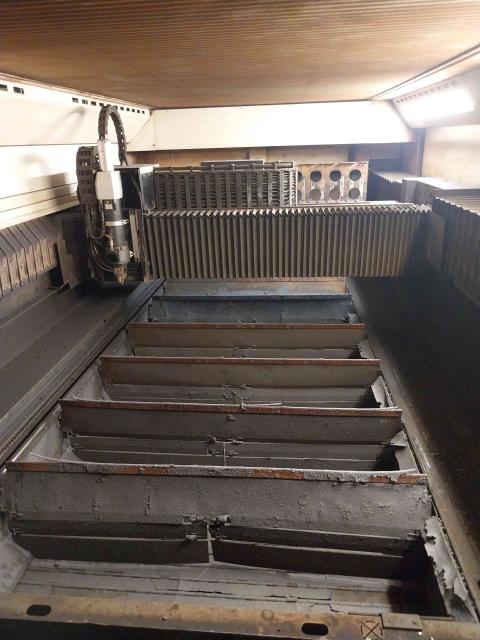

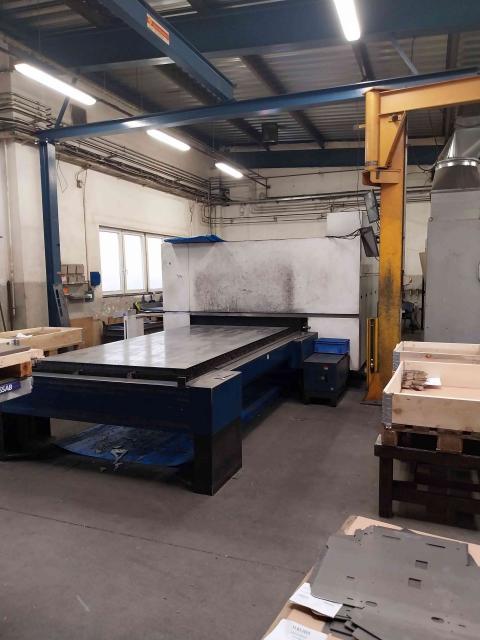

Fotografie
